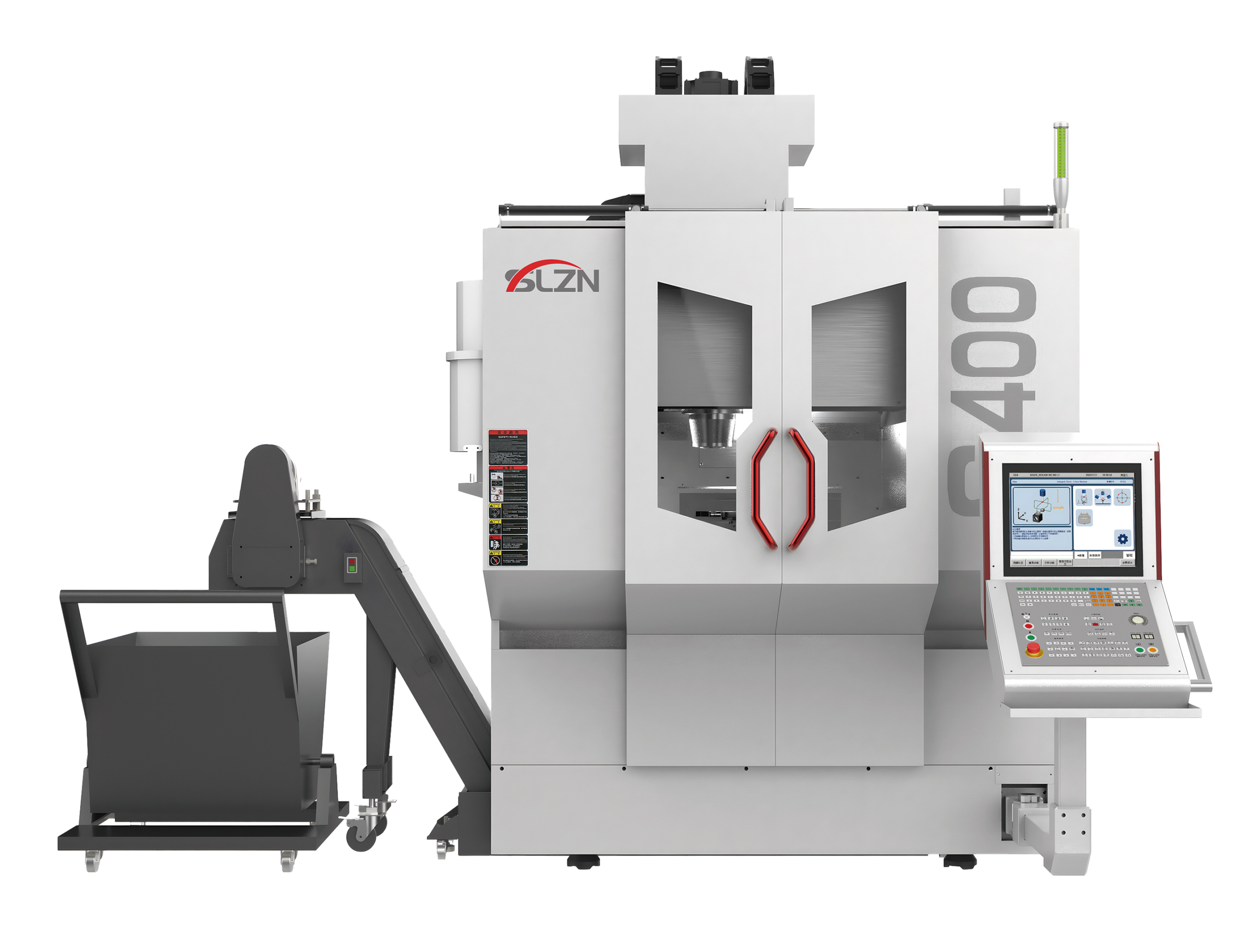

HIGH-SPEED CUTTINGFIVE-AXISMACHINING CENTER
(S400/S400D)
Aerospace
Precision Parts
medical device
Mold Industry
automotive industry
3C Products
| Item | Unit | S400 | S400D |
|---|---|---|---|
| System / Worktable | |||
| System (Control Unit) | - | 220MA-5 | 220MA-5 |
| X/Y/Z Axis Travel | mm | 420/780/360 | 420/780/360 |
| A/C Axis Travel | Degree | +30/-110/360 Infinite | +30/-110/360 Infinite |
| Distance from Worktable to Spindle Nose | mm | 140-500 | 140-500 |
| Worktable Size | mm | 350 | 320 |
| Max. Rotary Diameter | mm | 600 | 500 |
| Max. Load Capacity | kg | 200 | 100 |
| Spindle | |||
| Spindle (Standard) | - | - | - |
| Max. Spindle Speed / Taper | rpm | 20000HSK-A63 | 15000BBT-40 |
| Spindle Power | KW | 20 | 15 |
| Torque | N.m | 48 | 28.6 |
| Feed System | |||
| X/Y/Z Rapid Traverse | m/min | 36/36/36 | 36/36/36 |
| Max. Cutting Feed Rate | m/min | 15 | 15 |
| A/C Axis Feed Rate | rpm | 100/200 | 100/200 |
| Positioning Accuracy / Repeatability | - | - | - |
| X/Y | mm | 0.008/0.005 | 0.008/0.005 |
| Z | mm | 0.008/0.005 | 0.008/0.005 |
| A/C | ARCSEC | A/4 | A/4 |
| Automatic Tool Changer | |||
| Number of Tools | Pcs | 32T | 32T |
| Tool Change Time (T-T) | Sec | 3 | 3 |
| Max. Tool Length | mm | 200 | 200 |
| Max. Tool Diameter / Adjacent Toolless | mm | Φ70/Φ120 | Φ70/Φ120 |
| Max. Tool Weight | kg | 8 | 8 |
| Machine Dimensions | |||
| Overall Height | mm | 2650 | 2650 |
| Occupied Area (L×W) | mm | 3000×4030 | 3000×4030 |
| Net Machine Weight (Approx.) | kg | 7000 | 6500 |

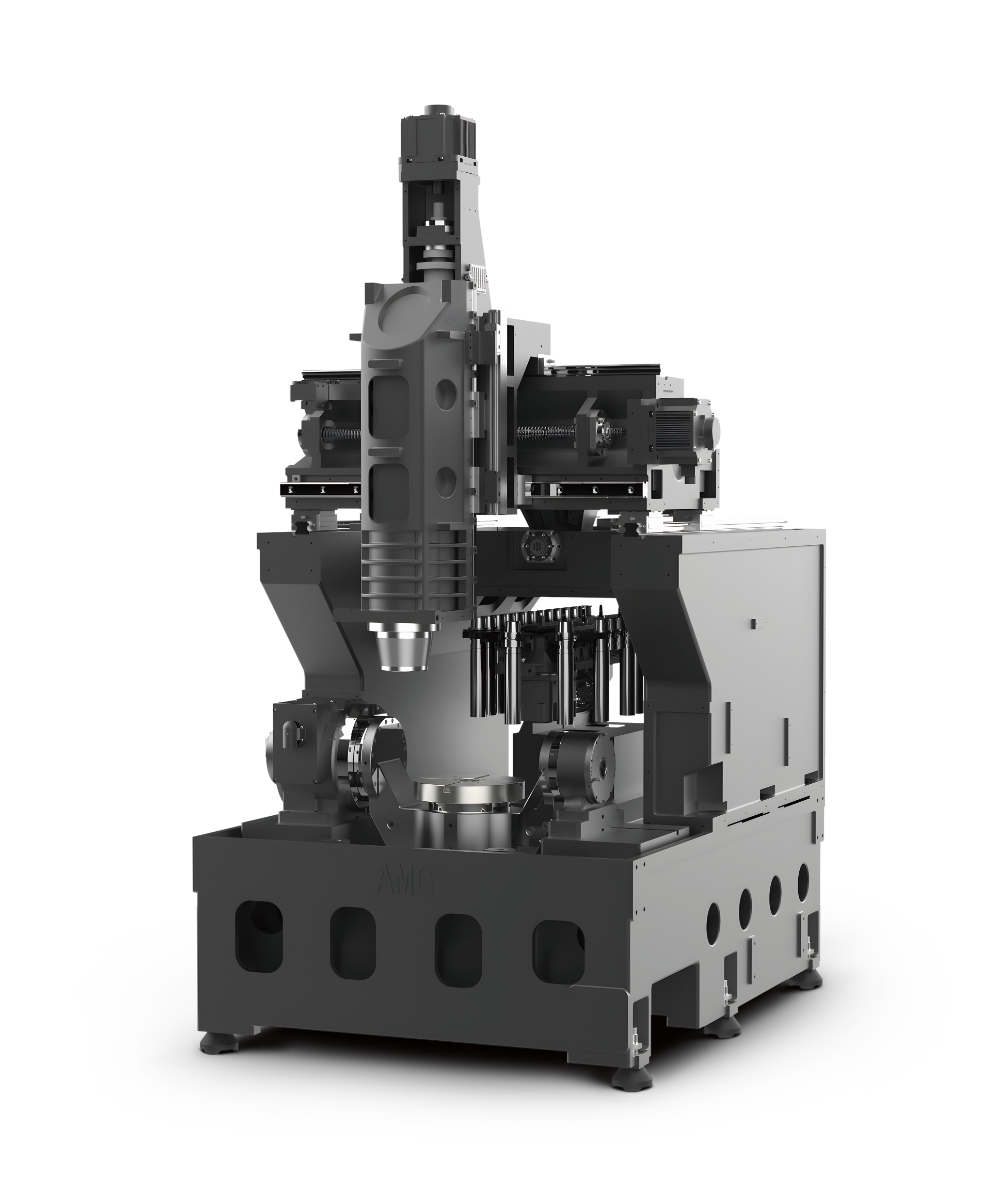

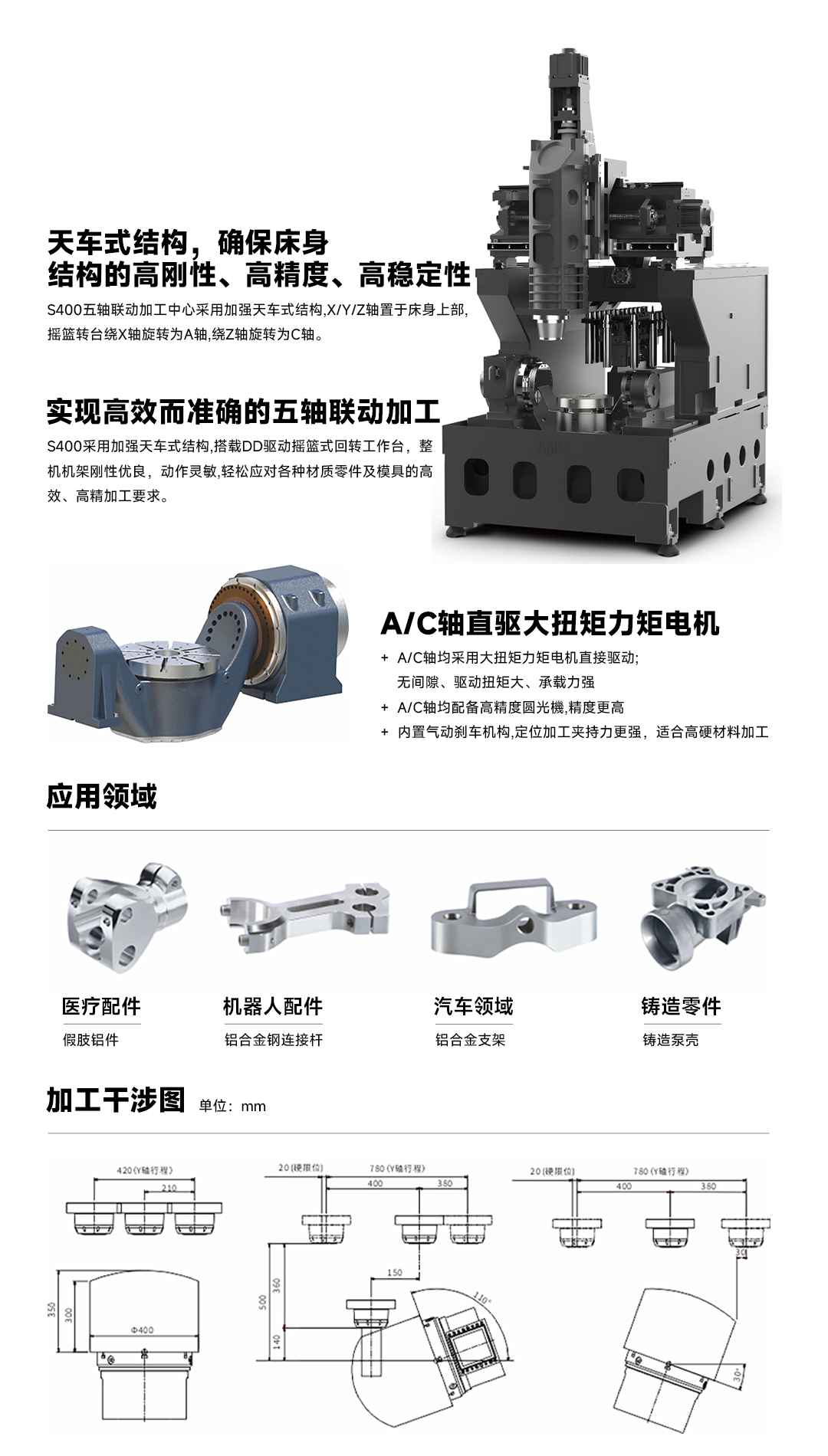

The overhead crane structure ensures high rigidity, high precision, and high stability of the bed structure
The S400 five-axis machining center adopts a reinforced crane-style structure, with the X/Y/Z axes positioned on the upper part of the bed. The cradle turntable rotates around the X axis as the A axis and around the Z axis as the C axis.
Achieve efficient and precise five-axis coordinated machining
The S400 adopts a reinforced crane-style structure and is equipped with a DD-driven cradle-style rotary table. The entire machine frame is highly rigid and responsive, easily meeting the efficient and high-precision machining requirements for parts and molds of various materials.

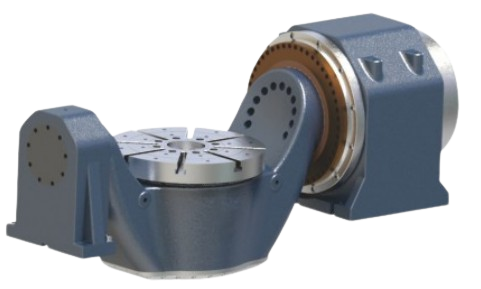

A/C-axis direct-drive high-torque motor
+ Both the A and C axes are directly driven by high-torque motors, featuring no backlash, high driving torque, and strong load-bearing capacity
+ Both the A and C axes are equipped with high-precision circular gratings, ensuring even higher accuracy
+ Equipped with a built-in pneumatic brake mechanism, it boasts stronger clamping force for positioning and processing, making it suitable for machining high-hardness materials
Application field

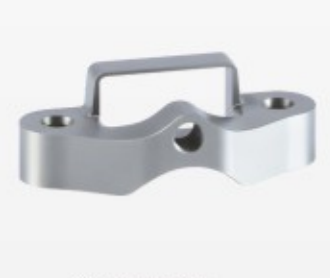

Medical accessories
prosthetic aluminum parts

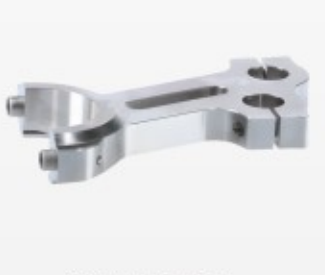

Robot accessories
Aluminum alloy steel connecting rod
Automotive Field
Aluminum Alloy Bracket
Casting Parts

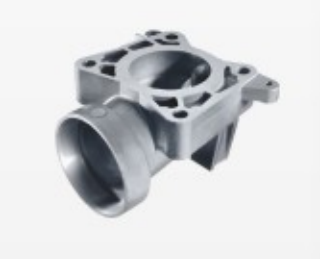

Casting Pump Housing

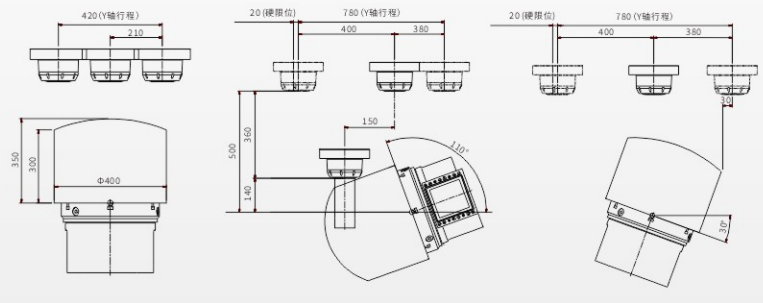

Processed Interferogram Unit: mm
