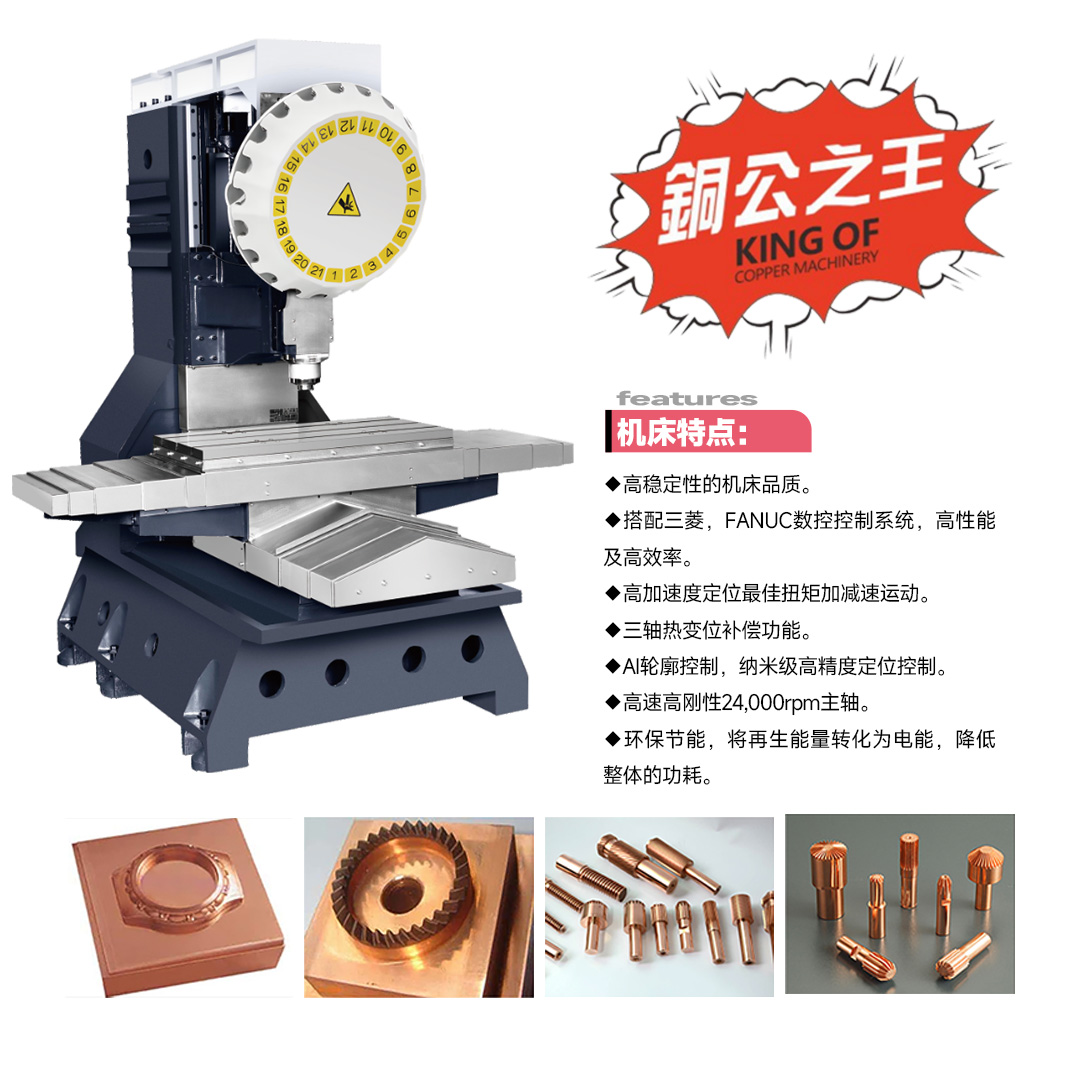

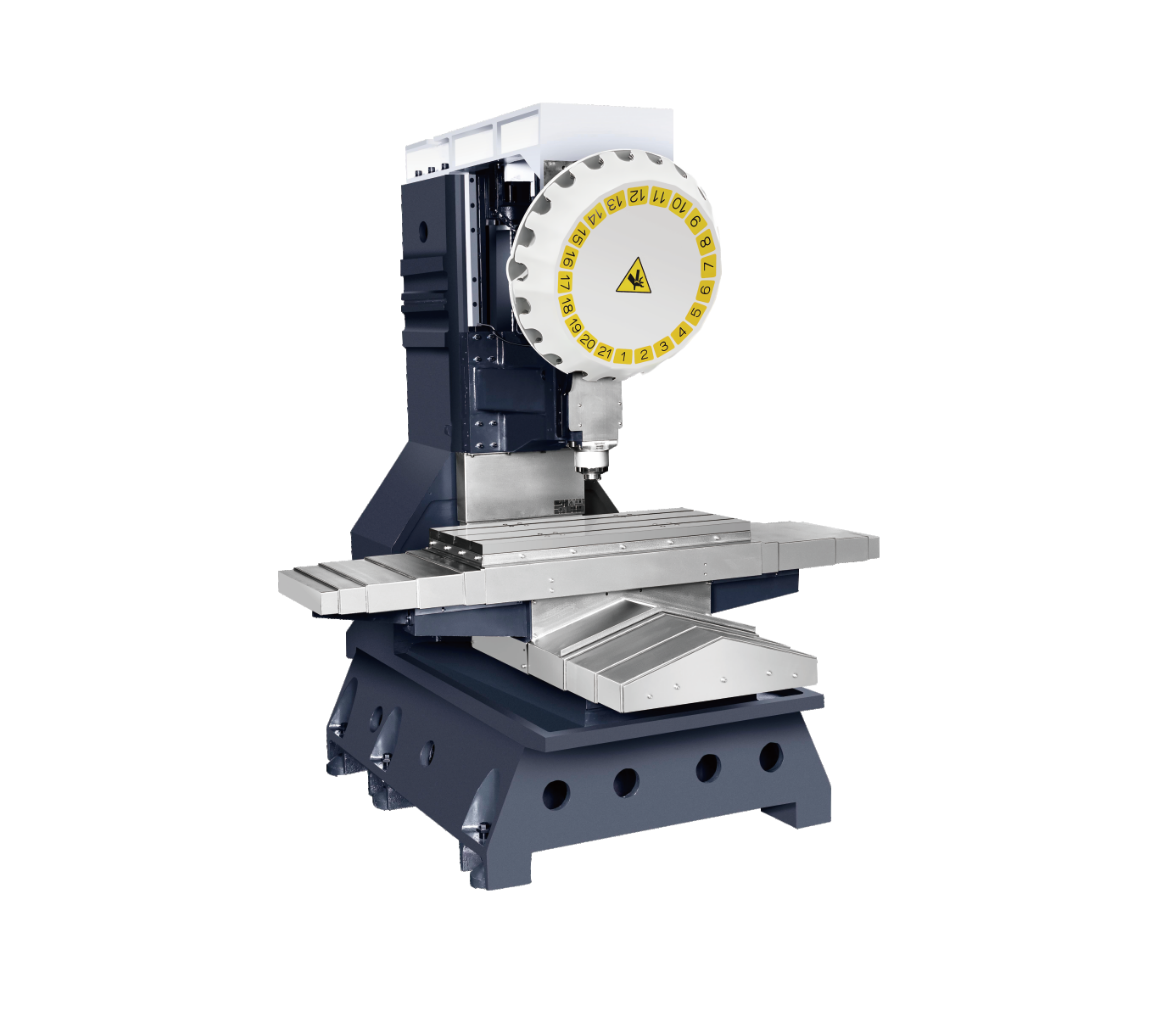

HIGH SPEED COPPERPUBLIC MACHINE
(SL600TG)
Copper material processing
Chip fixture processing
Precision mold finishing
| Item | Unit | 600TG |
|---|---|---|
| X-axis Travel | mm | 600 |
| Y-axis Travel | mm | 400 |
| Z-axis Travel | mm | 330 |
| Distance from Spindle Nose to Worktable | mm | 150–480 |
| Distance from Spindle Center to Column Guard | mm | 464 |
| Worktable Size | mm | 700×420 |
| Max. Load Capacity | kg | 250 |
| T-slot (Number × Size × Pitch) | mm | 3-14/125 |
| Spindle Taper / Diameter | - | Direct Drive BT30 (Φ100) |
| Spindle Speed | rpm/min | 20000/24000 |
| Ball Screw (X/Y/Z) | mm | X,Y: Φ28*8 Z: Φ32*8 |
| Linear Guide | mm | X,Y,Z: 30*4 |
| Spindle Motor Power | kW | 5.5 |
| Drive Motor Power (X/Y/Z) | kW | 1.5/1.5/3.0 |
| X, Y, Z Rapid Feed | m/min | 24/24/24 |
| Positioning Accuracy | mm | ±0.003/300 |
| Repeatability | mm | ±0.0025 |
| Automatic Tool Changer Type | - | Cap-type |
| Number of Tools | pcs | 21 |
| Machine Weight (Approx.) | kg | 3700 |
